The Azure Arc Gateway introduces two new components to allow a communication between a local server to Azure using “only 7” endpoints. This is currently (09.09.2024) private preview. This requires some steps to enable it in your network.

Requirements

You need to apply for the private preview by completing the Azure Arc gateway Limited Public Preview Sign-up form. This will allow one or multiple subscriptions to install the Azure Arc Gateway feature.

There is some network traffic that needs to be allowed. This is still quite a few URLs, but it significantly less compared to the 15 minimum Azure Arc Endpoints and those can turn easily to hundreds of URLs when using extensions with Azure Arc.

How to use an Azure Arc Gateway?

Always check the current information by Microsoft first. The information should be available here. This guide will share some screenshots and a more detailed how to, but with the Limited Preview status, this documentation might be outdated.

1. Download the az connected.whl file and use it to install the az connectedmachine extension.
2. Create an Arc gateway resource.
3. Ensure the required URLs are allowed in your environment.
4. Associate new or existing Azure Arc resources with your Arc gateway resource.
5. Verify that the setup succeeded.

Installation of the Azure Arc Gateway extension using Azure Cloud Shell

Download the installation file named connectedmachine-0.7.0-py3-none-any.whl from here. If you need to know about other aka.ms, please check out the super cool search engine Search aka.ms | akaSearch

This file connectedmachine-0.7.0-py3-none-any.whl contains the az connected machine commands required to create and manage your gateway Resource.

To install it we open the Azure Cloud Shell or any Azure Cli option you like, i.e. you can use the configuration in the Windows Terminal.

Make sure you run the commands to first list the subscriptions

az account list

and then connect to the subscription you want to update.

az account set –subscription ‘my-subscription-name’

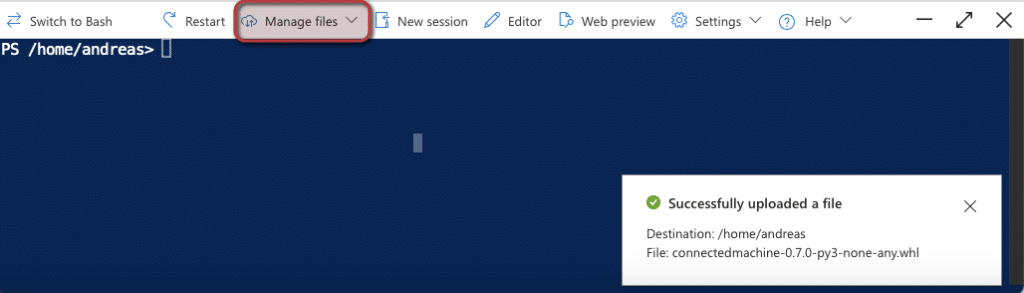

I like the Azure Cloud Shell, because I can easily upload the file for using it.

When the file is uploaded directly in the root of your Azure cloud shell you can execute a command similiar to mine (make sure you change the path)

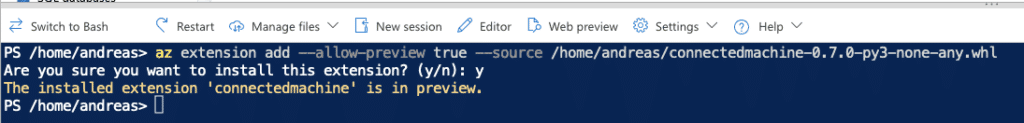

az extension add --allow-preview true --source /home/andreas/connectedmachine-0.7.0-py3-none-any.whl

The installation process gives a short feedback that it completed fine.

Create the Azure Arc Gateway Resource

On a machine with access to azure or in the Azure Cloud shell you need to run the following commands.

az login --use-device-code
az account set --subscription [subscription name or id]
az connectedmachine gateway create --name [Your gateway’s Name] --resource-group [Your Resource Group] --location [Location] --gateway-type public --allowed-features * --subscription [subscription name or id]

Here is my example code, which will first do a login using a device code. The first step is optional, since I will be using the Azure Cloud Shell and this is already authenticated through the Azure Portal Login.

az login --use-device-code
az account set --subscription devsubscription

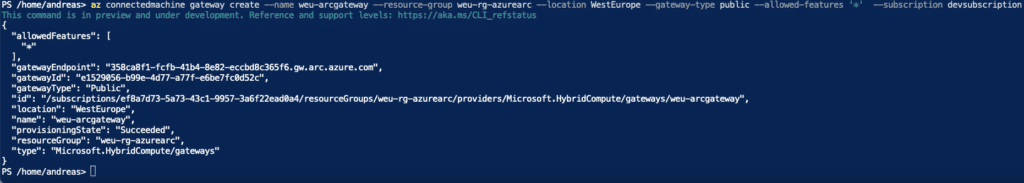

az connectedmachine gateway create --name weu-arcgateway --resource-group weu-rg-azurearc --location West Europe --gateway-type public --allowed-features '*' --subscription devsubscription

The Microsoft documentation is not correct for the –allowed-features option, so check that you enter ‘*’ or you will get the error I had initially.

At this point it is important to understand, that the Microsoft Guide explains the whole process of onboarding new systems, which is rather complicated. In this guide I will assume you have used the Azure Arc GUI on the Windows Server 2025 and want the already Azure Arc enabled server to use the Azure Arc Gateway. Check this guide about Azure Arc, if you need support getting this done.

Important: The existing machine must be using the Arc-enabled servers connected machine agent version 1.43 or higher to use the Arc gateway Limited Public preview.

We first need the command to associate the existing machine with the Arc Gateway resource.

az connectedmachine setting update --resource-group [res-group] --subscription [subscription name] --base-provider Microsoft.HybridCompute --base-resource-type machines --base-resource-name [Arc-server's resource name]  --settings-resource-name default --gateway-resource-id [Full Arm resourceid]

The first command looks complex and it is, so here is my example:

az connectedmachine setting update --resource-group weu-rg-azurearc --subscription devsubscription --base-provider Microsoft.HybridCompute --base-resource-type machines --base-resource-name W2K22-Home-WAC --settings-resource-name default --gateway-resource-id /subscriptions/ef8a7d73-5a73-43c1-9957-3a6f22ead0a4/resourceGroups/weu-rg-azurearc/providers/Microsoft.HybridCompute/machines/W2K22-Home-WAC/providers/Microsoft.HybridCompute/settings/default

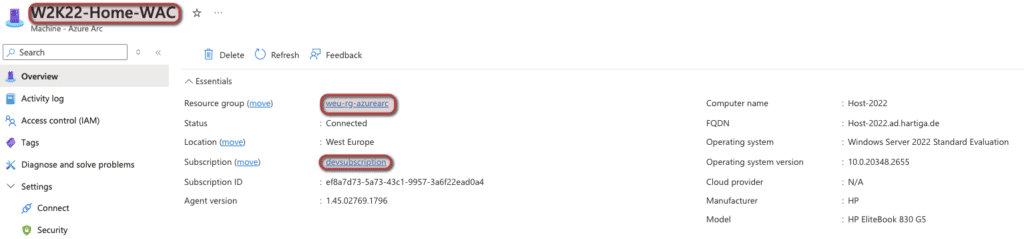

You need to get the “–gateway-resource-id” from the output after you installed the Azure Arc Gateway resource (see the screenshot above). The other information can all be found if you check your Azure Arc enabled server object in the Azure Portal

Configure the Azure Arc Gateway for Azure Arc Enabled Server

Once that step is completed you can update the machine by running the following command on the Azure Arc Enabled server with administrative rights

azcmagent config set connection.type gateway

Once that command has been executed you can run the following command to check the status

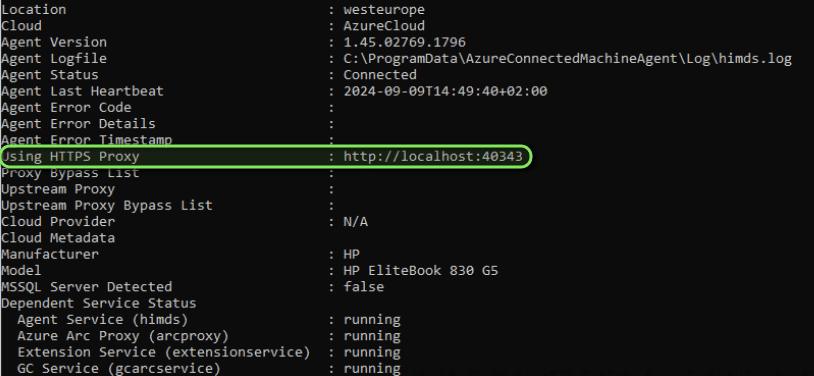

azcmagent show

When you see the “Using HTTPS Proxy” showing a value of “http://localhost:40343” you have completed your configuration of an Azure Arc Gateway and one Azure Arc enabled server.

Optional – Enable a Proxy for Azure Arc Enabled server

To enable the Azure Arc Gateway to communicate through an Enterprise Proxy requires an initial configuration or can be done later with this command.

azcmagent config set proxy.url "http://ProxyServerFQDN:port"

My proxy has the IP 192.168.0.52 and the port 3128. So my example command will look like.

azcmagent config set proxy.url 192.168.0.52:3128

With this command you can check the current configuration of your Azure Arc Agent on the Azure Arc enabled server.

azcmagent config get proxy.url

This command will disable the proxy config.

azcmagent config clear proxy.url

If you want to install a test server running Squid please check this guide.

In my test I did need to run the following command again to make sure the Agent Configuration was looking as expected. This command will enable the gateway function again.

azcmagent config set connection.type gateway

After running both commands you should see the “Using HTTPS Proxy” using the http://localhost:40343 and the Upstream Proxy should show your Proxy Server URL. This is my azcmagenet show output.

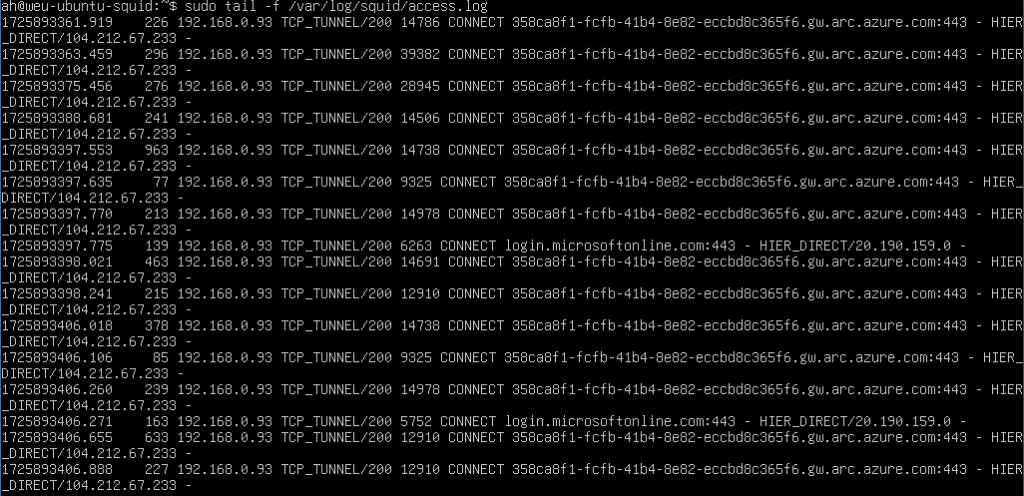

When you run an azcmagent check it will check the connection and if you check the Linux squid logfile it should look like this:

Important: This configuration for servers does not work with user authentication, so you need to create rules that will allow certain URLs (Azure Arc Gateway URLs) without authentication.

Check my guide “Squid on Hyper-V – new Ubuntu 24.04” on how to setup a squid with Ubuntu on Hyper-V if you need a proxy for your homelab or your dev environment.

Additional Resources

Check out the Youtube Video from Arc Jumpstart by the Product Manager Jalen McGee.
